ConnorYohandGitHub ff96a80947 PAYG B-3 / S-3: cucumber suite for shadow-mode flows + CI workflow (#6522)
## What this PR is

End-to-end cucumber coverage for the PAYG shadow charging engine (the
filter + interceptor stack from #6519), wired into CI via a new
`docker-compose-tests-saas.yml` workflow that runs only on PAYG-touching
PRs.

Stacked on #6519.

## Automated scenarios (run by `docker-compose-tests-saas.yml`)

See
[`testing/cucumber/features/payg/shadow_charges.feature`](../tree/payg-s3-cucumber/testing/cucumber/features/payg/shadow_charges.feature):

| Scenario | Validates |
|---|---|
| First tool call writes a CHARGED row | Filter + interceptor fire
end-to-end |
| Lineage join — second call on output | `JobService.joinOrOpen`
matching; no new shadow row |
| 4xx leaves the row CHARGED | "Customer paid for the attempt" semantics
|
| ZIP-returning tool records per-PDF OUTPUT | `PaygOutputExtractor`
unpacks + records signatures |
| Multi-file input writes a single shadow row | Multi-input group sizing
|
| `X-Stirling-Automation` sets PIPELINE source | Header → `JobSource`
detection |

All 6 run locally via `./testing/test-payg.sh` and will run on CI for
any PR that touches `app/saas/**`, the PAYG cucumber features, the saas
compose stack, or the workflow itself.

## Manual-only scenarios — documented in design doc, not in this suite

Two parts of the shadow engine are deliberately not automated; the
engine paths are unit-tested in
`PaygChargeInterceptorTest.afterCompletion_5xx_opened_*`, and the manual
procedures (which require a temporary throw endpoint or a container
restart with a flag flipped) live in [`notes/PAYG_DESIGN.md` §7.5.2
"PAYG cucumber: manual-only
scenarios"](../tree/payg-s3-cucumber/notes/PAYG_DESIGN.md).

- **5xx first-step failure → REFUNDED + CLOSED.** No reliably-5xx-ing
endpoint exists; manual procedure adds a throw endpoint, runs, asserts,
removes.
- **Kill-switch (`PAYG_FILTER_ENABLED=false`).** Needs a container
restart mid-suite; manual procedure tears down, flips env, brings up,
asserts zero shadow rows.

If either gets a hot-reload path (test-only throw endpoint shipped
behind a profile gate, or admin endpoint for the kill switch), automate
it in a follow-up and drop the manual procedure.

## CI workflow

`.github/workflows/docker-compose-tests-saas.yml` (new) —
self-contained, not wired into `build.yml`'s `files-changed` matrix so
the saas-cucumber job fails and succeeds independently. Triggers only on
PAYG-relevant paths. No JaCoCo coverage in v1 (saas compose doesn't have
the coverage override; can add later).

## Test infrastructure (recap)

- **`testing/compose/docker-compose-saas.yml`** — Stirling-PDF backend
with `STIRLING_FLAVOR=saas` + Postgres holding the `stirling_pdf`
schema. Supabase JWT auto-config disabled; API-key auth via
`SECURITY_CUSTOMGLOBALAPIKEY` is the live path the cucumber tests
exercise.
- **`testing/compose/payg/saas-init.sql`** + **`saas-seed.sql`** —
schema bootstrap + idempotent seed (team / user / wallet_policy).
- **`testing/cucumber/features/payg/shadow_charges.feature`** — the 6
scenarios above.
- **`testing/cucumber/features/steps/payg_step_definitions.py`** — step
defs using `requests` (HTTP) + `psycopg` (direct DB inspection). Direct
DB reads are deliberate — we want to see the filter's side effects, not
relay them through another API layer.
- **`testing/test-payg.sh`** — companion runner to `testing/test.sh`.
Brings up the saas compose, waits for health, seeds, runs behave, tears
down.
- **`behave.ini`** excludes `features/payg` from the default behave run
(the saas-cucumber CI job invokes it explicitly).

## Why a separate harness from `testing/test.sh`

The existing `test.sh` covers the proprietary-flavour stack (no PAYG
tables, no saas profile). Coupling two CI matrices that fail and succeed
independently into one script is asking for trouble. Keep the
saas-cucumber job focused on its own concerns; once the harness is
mature, the wider team can decide whether to merge them.

## Tracked in

`notes/PAYG_DESIGN.md` §7.5 (PR-S3) + §7.5.2 (manual scenarios).
2026-06-09 14:47:40 +00:00
2026-06-02 16:08:24 +00:00
2026-06-03 16:16:33 +00:00
2026-06-09 13:18:57 +00:00
2026-06-02 16:08:24 +00:00
2026-05-22 13:40:34 +01:00
2026-03-25 11:00:40 +00:00
2026-06-02 16:08:24 +00:00
2026-03-25 11:00:40 +00:00

Stirling PDF logo

Stirling PDF - The Open-Source PDF Platform

Stirling PDF is a powerful, open-source PDF editing platform. Run it as a personal desktop app, in the browser, or deploy it on your own servers with a private API. Edit, sign, redact, convert, and automate PDFs without sending documents to external services.

Docker Pulls Discord OpenSSF Scorecard GitHub Repo stars

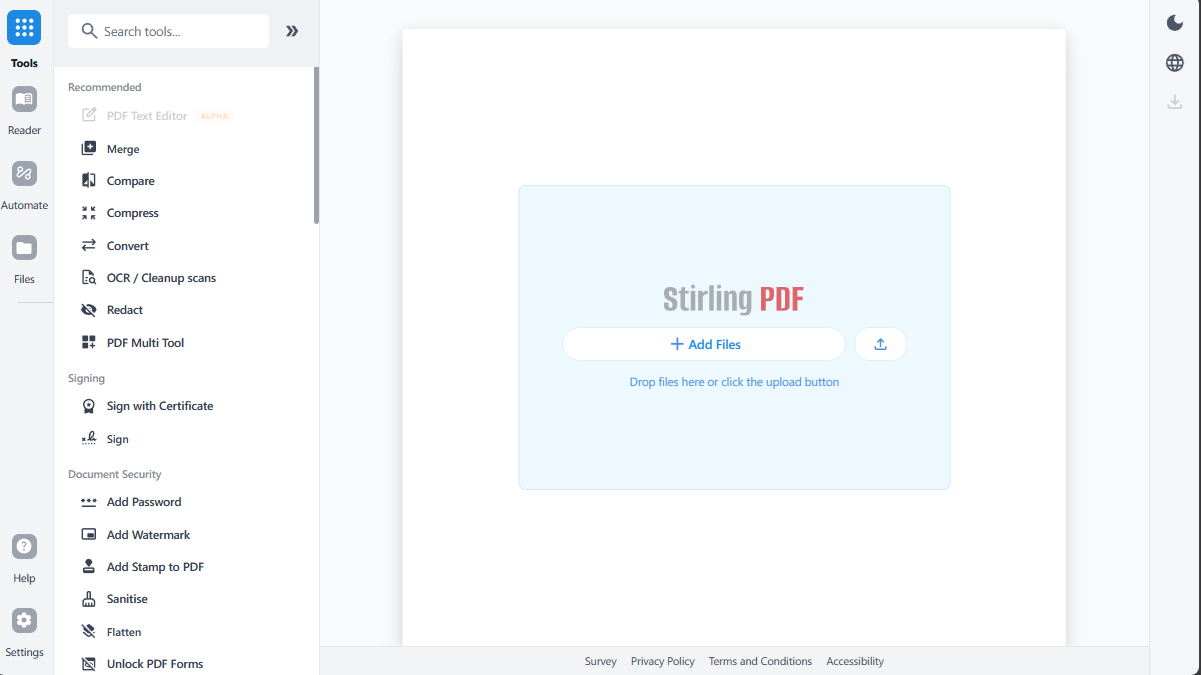

Stirling PDF - Dashboard

Key Capabilities

  • Everywhere you work - Desktop client, browser UI, and self-hosted server with a private API.
  • 50+ PDF tools - Edit, merge, split, sign, redact, convert, OCR, compress, and more.
  • Automation & workflows - No-code pipelines direct in UI with APIs to process millions of PDFs.
  • Enterprisegrade - SSO, auditing, and flexible onprem deployments.
  • Developer platform - REST APIs available for nearly all tools to integrate into your existing systems.
  • Global UI - Interface available in 40+ languages.

For a full feature list, see the docs: https://docs.stirlingpdf.com

Quick Start

docker run -p 8080:8080 docker.stirlingpdf.com/stirlingtools/stirling-pdf

Then open: http://localhost:8080

For full installation options (including desktop and Kubernetes), see our Documentation Guide.

Resources

Support

Contributing

We welcome contributions! Please see CONTRIBUTING.md for guidelines.

This project uses Task as a unified command runner for all build, dev, and test commands. Run task install to get started, or see the Developer Guide for full details.

For adding translations, see the Translation Guide.

License

Stirling PDF is open-core. See LICENSE for details.
